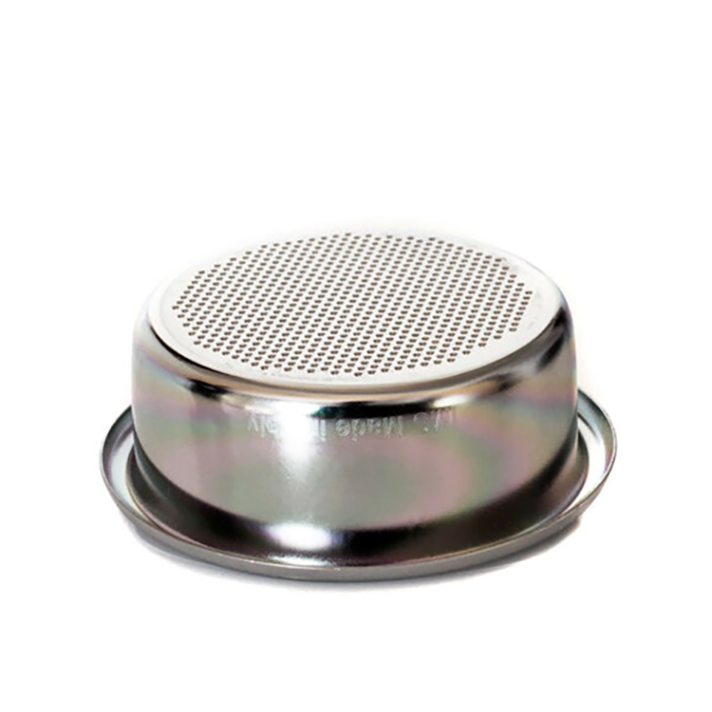

Double filter basket IMS B70 2TC H28.5
Brand: IMS Filtri
Filtre IMS 2 COUPS B70 2TC H28.5 E ( BT702TCH28.5E )
Average capacity 18/22 gr.
BORDER: Ø 70 mm (B70)
HEIGHT: 28.5 mm (H28.5)
BODY: Ø 60 mm for Ø 58 mm tamper
SHAPE: truncated cone with specific corner rounding
The shape was created by I.M.S. to obtain the proper ratio between the base and height of the coffee puck in relation to capacity. The lower part of the filter has a truncated cone shape. The middle section is connected to the upper body by means of specific corner rounding. This shape has been designed to exploit the whole coffee puck, and to facilitate drying and expulsion.
I.M.S. perforation is exclusive and patented
PERFORATED AREA: Ø 30 mm
area optimized in relation to the shape of the filter.
NUMBER OF HOLES: 641 Norm Spacing (N)
The number and distribution of the perforations are designed to balance the delivery in relation to the height and shape of the filter and perforated area.
HOLE DIAMETER: 0.30 mm
SHAPE OF THE HOLE: CIRCULAR with CONICAL cross section.
COMPETITION PERFORATION: Relaminated and Recalibrated.
Ascaso, Astoria, Bezzera, Bfc, Bianchi, Brasilia, Conti, D.I.D. L'Orchestrale, E61 standard, ECM, Elektra, Expobar, Faema, Fiorenzato, Fracino, Grimac, Iberital, Kees Van, Der Westen, La Marzocco, La Nuova Era, La Pavoni, La Scala, Magister, Nuova Simonelli, Promac, Quality Espresso, Rancilio, Rocket, Royal First, SAB, Sanremo, Slayer, SV, Synesso, VFA, Vibiemme, Victoria Arduino, Wega
